Column Base Plate Bearing Pressure
Column Base Plate Bearing Pressure

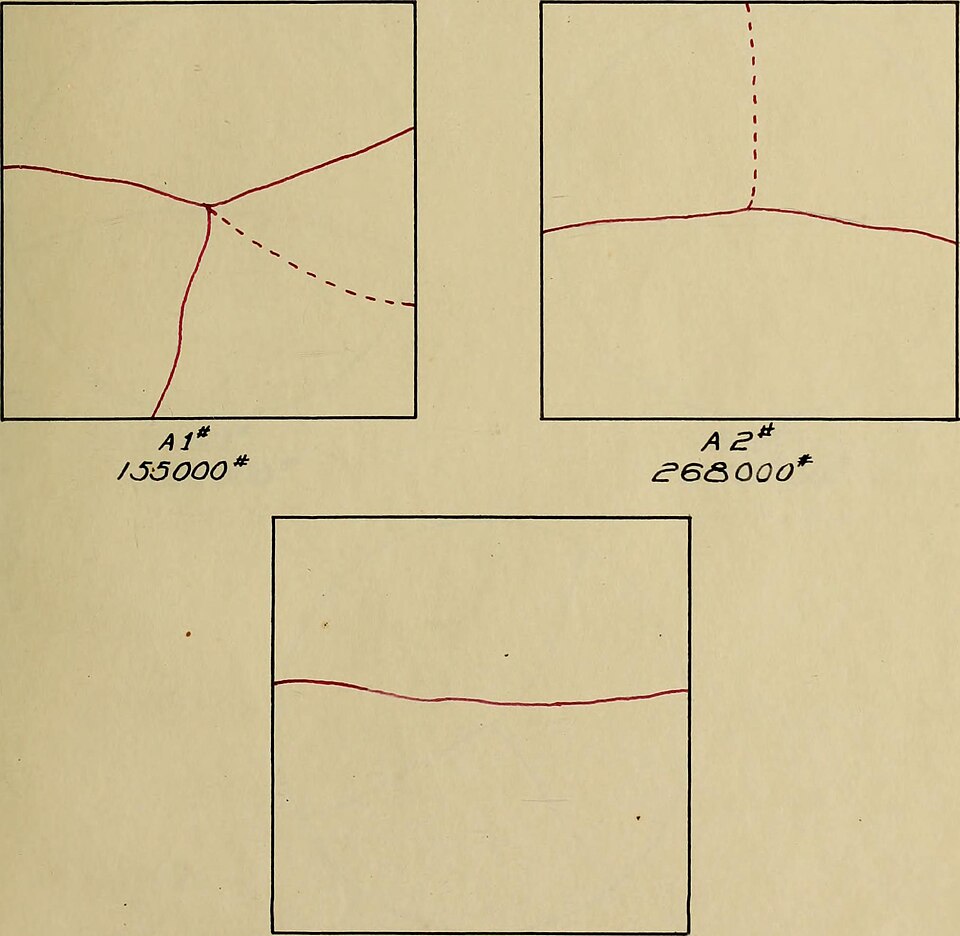

A column base plate spreads a concentrated steel column reaction over a wide enough footprint that the concrete underneath is not crushed. Because concrete is strong in compression but has a comparatively low allowable bearing stress relative to steel, the base plate — not the column itself — is usually what sizes this connection.If the base plate is undersized the concrete can crush locally under the column, and because this failure is often hidden beneath a plate and grout bed, it can go unnoticed until cracking or spalling appears around the base — so bearing pressure is checked early in any base plate design, well before bolt or plate-thickness checks.
The average bearing pressure on the concrete is q = P/(B·L_p), the column load divided by the base plate plan area, compared against an allowable pressure taken as a fraction of the concrete strength. where P is the column axial load, B and L_p are the base plate plan dimensions, q is the resulting bearing pressure, f_c is the concrete compressive strength, and q_allow is the allowable bearing pressure on the concrete.
Inputs
P := 500 kN=500000 N
B := 300 mm=300 mm
L_p := 300 mm=300 mm
f_c := 25 MPa=25 MPa
Dividing the column load by the plate plan area gives the average pressure the concrete must resist.
q := P/(B·L_p)=5.56 MPa
Codes typically allow a fraction of the concrete strength as bearing pressure to account for the confinement the surrounding concrete provides.
q_allow := 0.85·f_c=21.25 MPa
Comparing the allowable pressure with the actual demand gives the factor of safety against local crushing.
SF := q_allow/q=3.83
Results
An SF near 3 to 4, as found here, is common because base plates are frequently sized by bolt layout or plate bending rather than bearing pressure alone, leaving bearing with generous reserve. If SF falls below about 1, enlarging the plate footprint (or stepping up the concrete strength) is the direct fix, since bearing pressure scales inversely with plate area. This check does not cover plate bending between the column flanges and the plate edge, or anchor bolt tension under any net uplift — both are separate checks on the same connection.
Assumptions & limitations
- Concentric axial load only — no applied moment or eccentricity at the base.
- Uniform bearing pressure distribution across the plate footprint (rigid plate assumption).
- The 0.85 factor represents a simplified allowable bearing stress; codes may permit higher values for confined concrete piers.
- Plate bending and anchor bolt checks are performed separately.
