Insulation Thickness for a Target Heat Loss
Insulation Thickness for a Target Heat Loss

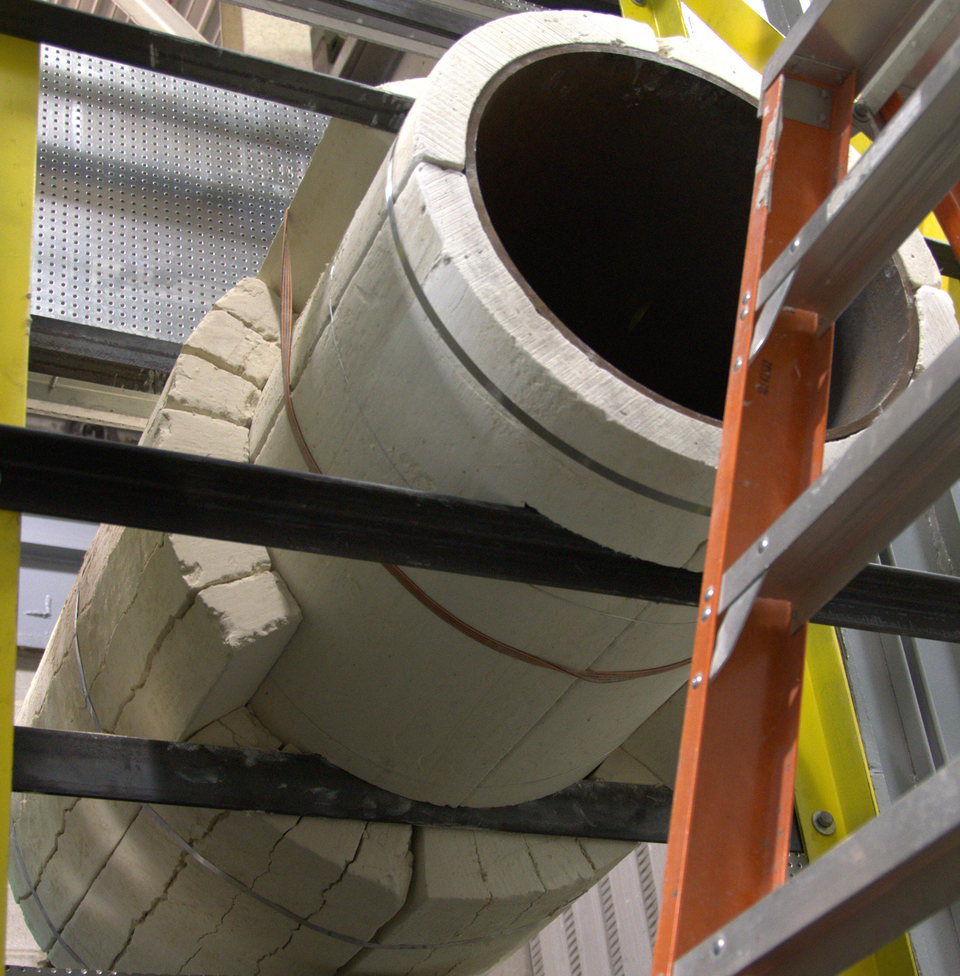

Insulation thickness is usually the design variable in a thermal envelope problem: given an allowable heat loss (set by an energy code, a process temperature requirement, or a personnel-safety surface-temperature limit), Fourier's law of steady conduction can be rearranged to solve directly for the thickness of insulating material needed rather than checking heat loss for an assumed thickness. This inverse form is exactly what a mechanical or building insulation spec is built from — pick the target heat loss first, then size the material — and it shows immediately why very low target heat losses demand disproportionately thick insulation, since thickness and heat loss are inversely related.
Rearranging Fourier's law for a plane wall gives t = k·A·dT/Q, the insulation thickness needed to hold heat loss to a target Q. where k is the insulation's thermal conductivity, A is the wall area, dT is the temperature difference across the insulation, and Q is the target (maximum allowable) heat loss rate.
Inputs
Q_target := 50 W=50 W
k_ins := 0.04 W/(m·K)=0.04 kg·m/K/s^3
A_wall := 10 m^2=10 m^2
dT_wall := 25 K=25 K
Rearranging steady one-dimensional Fourier conduction to solve for thickness converts the target heat loss, area, and temperature difference directly into how much insulation material is required.
t_ins := k_ins·A_wall·dT_wall/Q_target=200 mm
Results
The result, 0.2 m (200 mm) of insulation, is a thick layer that reflects a fairly tight heat-loss target relative to the wall area and temperature difference — real designs would typically compare this against standard insulation board thicknesses and either accept the nearest standard size or relax the target slightly. Because thickness is inversely proportional to the target heat loss, halving the allowable Q doubles the required insulation thickness, so very aggressive heat-loss targets can quickly become impractical or uneconomical, at which point a lower-conductivity insulation material is usually a more effective lever than adding more thickness of the same material.
Assumptions & limitations
- Steady-state, one-dimensional conduction (plane wall approximation).
- Constant thermal conductivity k over the temperature range.
- Neglects any convective or radiative surface resistances at the boundaries.
- Plane-wall geometry assumed; a curved (pipe/cylinder) wall would need the cylindrical form instead.
