Concrete Mix Volume by the Absolute Volume Method

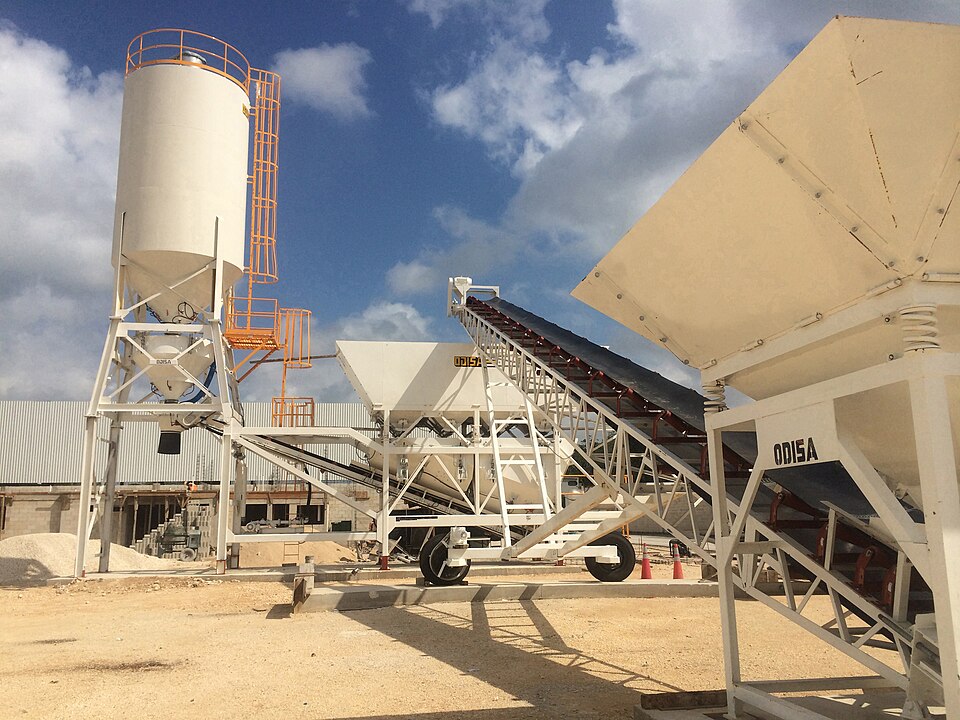

Concrete mix design proportions cement, water, and aggregate by mass, but the mix must ultimately fill a known batch volume. The absolute volume method converts each ingredient’s mass to the solid volume it actually occupies (mass divided by its specific gravity/density) and sums them to find the total solid volume, then accounts for intentionally entrained air.Getting this volume balance right is what lets a batch plant proportion a mix that yields exactly one cubic meter (or one cubic yard) of finished concrete — a mix that is off on this volume check will short-yield the pour or leave excess paste, both of which cost money and hurt consistency.
The solid volume is the sum of each ingredient’s mass over its density, and the total batch volume is V_batch = V_solids/(1 − air fraction). where m_cem, m_wat and m_agg are the cement, water and aggregate masses, rho_cem, rho_wat and rho_agg are their densities, and air_pct is the entrained air fraction.
Inputs
m_cem := 350 kg=350 kg
rho_cem := 3150 kg/m^3=3150 kg/m^3
m_wat := 175 kg=175 kg
rho_wat := 1000 kg/m^3=1000 kg/m^3
m_agg := 1800 kg=1800 kg
rho_agg := 2650 kg/m^3=2650 kg/m^3
air_pct := 0.02=0.02
Dividing each ingredient’s mass by its own density converts mass into the physical volume it occupies, and summing those gives the total solid (paste plus aggregate) volume.
V_solids := m_cem/rho_cem + m_wat/rho_wat + m_agg/rho_agg=0.97 m^3
The solid ingredients do not fill the whole batch — a small fraction of the volume is intentionally entrained air for freeze-thaw durability — so the solid volume is scaled up to find the total as-batched volume.
V_batch := V_solids/(1 - air_pct)=0.99 m^3
Results
A batch volume close to 1.0 m³ confirms the mix proportions are well balanced for a standard one-cubic-meter batch design. If V_batch comes out noticeably above or below 1.0 m³, the mix proportions need adjusting — typically by tweaking the aggregate or water content — since a batch plant relies on this volume check to hit its target yield every load.
Assumptions & limitations
- Ingredient densities are specific-gravity-based constants for the given materials.
- Entrained air fraction assumed uniform throughout the batch.
- No allowance for chemical admixture volume.
