Disc Brake Pad Contact Pressure
Disc Brake Pad Contact Pressure

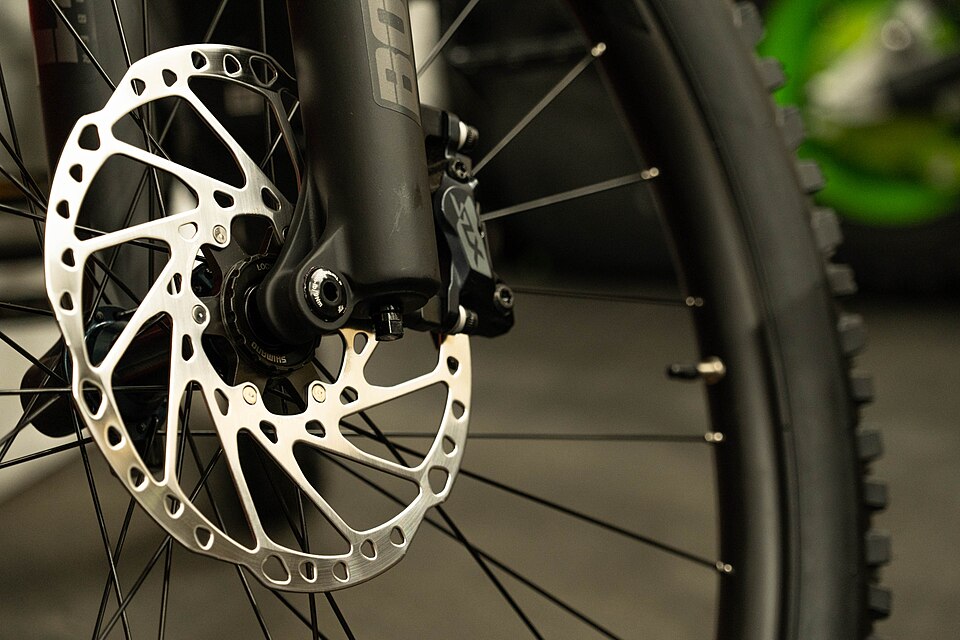

A disc brake generates stopping torque by clamping friction pads against a spinning rotor, and the contact pressure between pad and rotor is a key input to both the braking torque produced and the wear rate and heat generation the pad material has to survive. Pad contact pressure is one of the first parameters checked when sizing a brake system or selecting a pad material.Excessive contact pressure accelerates pad wear and can push the friction material past its temperature-dependent performance envelope, leading to brake fade — a dangerous, sometimes sudden loss of friction coefficient under sustained hard braking — so pad area is sized with real margin above the minimum needed just to generate adequate torque, not to the bare minimum.
The average pad contact pressure is p_pad = F_p/A_pad, the clamping force applied to the pad divided by its contact area. where F_p is the clamping force applied to the brake pad and A_pad is the pad's contact area against the rotor, giving the resulting average contact pressure p_pad.
Inputs
F_p := 1500 N=1500 N
A_pad := 3000 mm^2=3e-03 m^2
Dividing the clamping force by the pad's contact area gives the average pressure the friction material experiences, which feeds directly into both the braking torque calculation and the pad wear-rate estimate.
p_pad := F_p/A_pad=500000 Pa
Results
A contact pressure of 0.5 MPa here is a moderate value for a typical automotive or light-vehicle disc brake pad, well within the range most common friction materials are rated for continuously. This average pressure assumes uniform contact across the full pad area, but real contact pressure is rarely perfectly uniform — pad taper wear, rotor runout, and caliper flex all cause it to vary across the pad face, with the leading edge often seeing higher pressure and wearing faster. Because contact pressure directly drives braking torque (through pressure times area times friction coefficient times effective radius), a pad that has worn down and reduced its effective contact area will see rising pressure for the same clamping force, which is one reason braking performance can change as pads age even before they need replacement.
Assumptions & limitations
- Uniform contact pressure across the full pad area is assumed (a simplification of real, non-uniform contact).
- Static clamping force assumed — no dynamic pressure spike from a rapid brake application is included.
- Pad and rotor are assumed to be in full, flat contact (no taper wear or rotor runout).
- This is a pressure check only — braking torque requires the friction coefficient and effective rotor radius as well.
