Multi-Plate Clutch Torque Capacity
Multi-Plate Clutch Torque Capacity

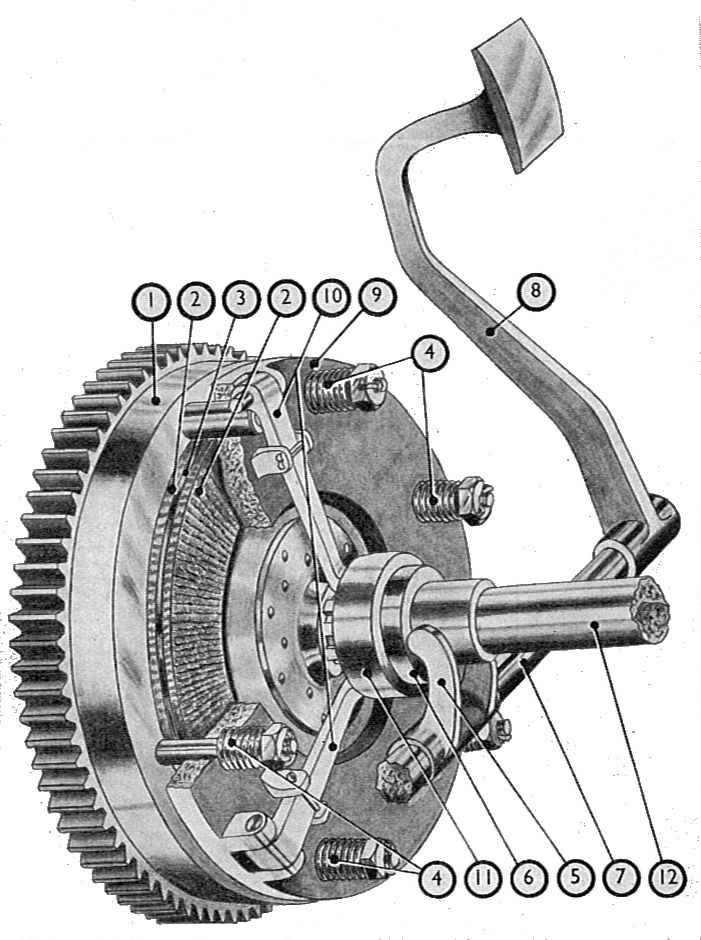

Multi-plate clutches stack several friction surfaces together to transmit more torque within a compact envelope than a single-plate clutch could manage at the same axial clamping force — each additional friction interface adds proportionally to the total torque capacity. They are common wherever high torque needs to be engaged and disengaged in a limited radial space, such as automotive transmissions and industrial power take-offs.Clutch design has to balance torque capacity against the axial force available to clamp the plates and the resulting pressure on the friction material, since overly aggressive clamping can accelerate wear or generate excessive heat during slipping engagement — the uniform-wear model used here is the standard simplified approach once a clutch has worn in and pressure redistributes toward this idealized pattern.
The uniform-wear clutch torque capacity is T_c = n_s·mu_c·F_ax·R_m, the number of friction surfaces times the friction coefficient, axial clamping force, and mean friction radius. where n_s is the number of friction surfaces, mu_c is the coefficient of friction of the clutch material, F_ax is the total axial clamping force, R_m is the mean effective friction radius, and T_c is the resulting torque capacity.
Inputs
n_s := 2=2
mu_c := 0.3=0.3
F_ax := 2000 N=2000 N
R_m := 0.1 m=100 mm
Under the uniform-wear assumption, torque capacity scales directly with the number of friction surfaces, the friction coefficient, the clamping force, and the mean radius at which that friction force effectively acts.
T_c := n_s·mu_c·F_ax·R_m=120 Nm
Results
A torque capacity of 120 N·m for this two-surface clutch shows the direct payoff of adding friction surfaces — a single-surface clutch under the same clamping force and radius would only manage half that torque, which is exactly why multi-plate designs are chosen when torque demand exceeds what a single interface can transmit within the available envelope. Because torque capacity scales linearly with the mean radius, increasing plate diameter is often more effective than adding more plates when radial space allows, since it doesn't add the extra axial stack length that more plates require. This uniform-wear model gives a slightly lower (more conservative) torque estimate than the alternative uniform-pressure model, which is why it is the more commonly used assumption for a worn-in clutch design check.
Assumptions & limitations
- Uniform-wear pressure distribution assumed (appropriate for a worn-in clutch, as opposed to a brand-new one).
- Friction coefficient is assumed constant and dry (or per the specified lubrication condition) across all surfaces.
- All friction surfaces are assumed to engage simultaneously and share load equally.
- No dynamic (slip-engagement heating) effects are included — this is the static, fully engaged torque capacity.
