Net Positive Suction Head Available (NPSHa)
Net Positive Suction Head Available (NPSHa)

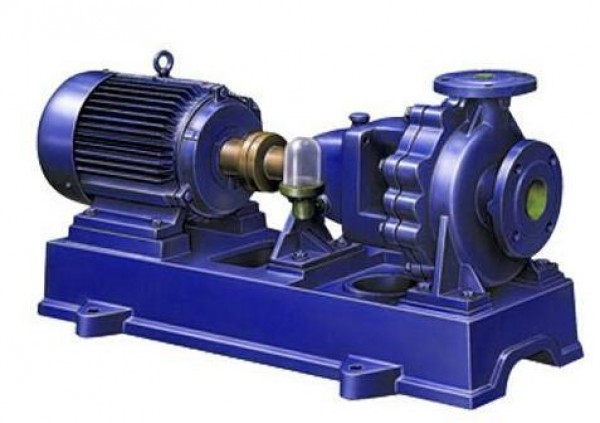

Every centrifugal pump requires a minimum suction-side pressure margin above the fluid's vapor pressure to avoid cavitation — the formation and violent collapse of vapor bubbles inside the pump that erodes impellers, causes noise and vibration, and craters efficiency — and net positive suction head available (NPSHa) is exactly this margin, calculated from the actual installation's pressures, elevations, and losses. A pump only avoids cavitation if NPSHa exceeds the NPSH required by the specific pump model (a value from the manufacturer's curve), so NPSHa is one of the first checks in any pump installation design, particularly for pumps drawing from a tank below atmospheric pressure, at elevation, or with hot or volatile fluids where vapor pressure is high.
The suction head available is NPSHa = (Patm - Pvap)/(rho·g) - hs - hf, converted to head and reduced by static lift and friction losses. where Patm is the pressure at the suction source surface, Pvap is the fluid vapor pressure, rho is the fluid density, g is gravitational acceleration, hs is the static suction lift, and hf is the friction head loss in the suction line.
Inputs
P_atm2 := 101325 Pa=101325 Pa
P_vap2 := 2340 Pa=2340 Pa
rho_p := 1000 kg/m^3=1000 kg/m^3
g_p := 9.81 m/s^2=9.81 m/s^2
h_s := 2 m=2 m
h_f := 0.5 m=500 mm
Converting the difference between atmospheric and vapor pressure into head, then subtracting the static lift the pump must draw fluid up against and the friction losses in the suction piping, gives the actual pressure margin available at the pump inlet above the point where the fluid would start to vaporize.
NPSHa := P_atm2/(rho_p·g_p) - P_vap2/(rho_p·g_p) - h_s - h_f=7.59 m
Results
An NPSHa around 7.6 m is a comfortable margin for most centrifugal pumps, whose required NPSH typically ranges from about 2 to 6 m depending on pump size and speed — the installation is safe as long as NPSHa exceeds the pump's required NPSH with a reasonable margin (often a 0.5–1 m safety factor is added on top). If NPSHa came out lower — from a higher suction lift, hotter fluid with higher vapor pressure, or a long, restrictive suction line — the fix is to lower the pump relative to the source, shorten or enlarge the suction piping, or select a pump with a lower NPSH requirement, since cavitation cannot be corrected after the fact by controls or operating adjustments alone.
Assumptions & limitations
- Suction source open to atmospheric pressure at its surface.
- Static suction lift hs represents the pump above the source liquid level (a suction lift condition).
- Fluid vapor pressure evaluated at the pumped fluid temperature.
- Friction loss hf assumed already computed for the actual suction pipe run and fittings.
