Roller Chain Pitch Length
Roller Chain Pitch Length

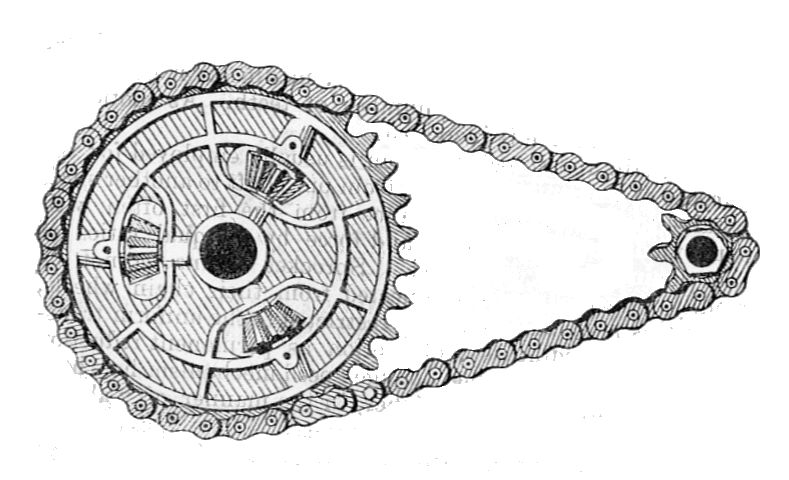

Roller chain drives, common in bicycles, conveyors, and industrial power transmission, are sized in whole numbers of chain "pitches" — the fixed link length of the chain — rather than in continuous length units, because a roller chain can only be shortened or lengthened by whole links. The standard chain-length formula estimates the number of pitches needed to wrap two sprockets of given tooth counts at a specified center distance.Getting chain length wrong by even a fraction of a pitch means the calculated value has to be rounded to the nearest whole (and often even) number of links, which then requires slightly adjusting the actual center distance to take up the resulting slack — chain drives are almost always designed with an adjustable center distance (via a slotted mount or idler sprocket) specifically to accommodate this rounding.
The standard chain length formula gives L_p = 2·C_p + (N_1+N_2)/2 + ((N_2-N_1)/(2·pi))^2/C_p, all in units of chain pitches. where C_p is the center distance expressed in chain pitches, N_1 and N_2 are the tooth counts of the small and large sprockets, and L_p is the resulting chain length in pitches.
Inputs
C_p := 30=30
N_1 := 17=17
N_2 := 45=45
This formula mirrors the flat-belt length relation but works entirely in dimensionless pitch units, combining the straight spans, the average tooth-count wrap contribution, and a correction term for the difference in sprocket sizes.
L_p := 2·C_p + (N_1+N_2)/2 + ((N_2-N_1)/(2·pi))^2/C_p=91.66
Results
The calculated length of about 91.7 pitches must be rounded up to the nearest whole number of links — and preferably to an even number, since an odd link count requires a special offset link that is weaker than a standard link. Once the chain length is rounded, the actual center distance is recalculated (or simply adjusted via a slotted mount) to take up the resulting slack, since the chain can no longer exactly match the originally assumed 30-pitch center distance. Chain drives also need adequate slack for proper sag and lubrication access, so the final installed center distance is usually set slightly shorter than the theoretical taut-chain value.
Assumptions & limitations
- All quantities expressed in dimensionless chain-pitch units — a specific chain pitch size is applied afterward.
- Result should be rounded up to the nearest whole (preferably even) number of links for a standard chain.
- Formula assumes a simple two-sprocket open drive with no idler sprockets.
- Center distance is typically re-adjusted slightly after rounding to remove excess slack.
